產品簡介：GDL型立式多級管道離心泵是一種用于輸送液體的高效、可靠設備。它采用立式結構，體積小、結構緊湊，適用于城市供水、工業循環系統等領域。具有揚程和流量范圍大、噪音低、使用壽命長等特點。同時，它還具備防干轉功能，能夠自動停止運行，保護設備的安全可靠運行。
產品型號GDL
訪問量3544
更新時間2024-04-30
產品產地安徽天長
服務熱線
18226668889
歡迎您的來電！
立即咨詢
產品詳情
GDL型立式多級管道離心泵

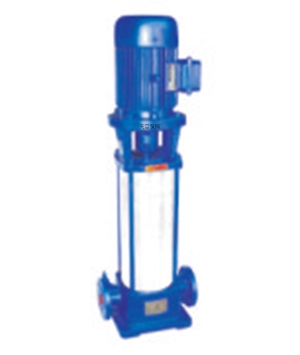

產品圖片：
產品說明:
該型泵主要使用于高壓運行系統中冷熱清水的循環和增壓、高層建筑多臺泵并聯供水、消防、鍋爐給水和冷卻水系統級各種沖洗液的輸送等。

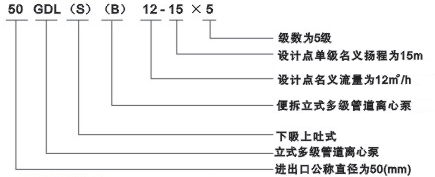

GDL型立式多級管道離心泵型號說明:
GDL型立式多級管道離心泵技術參數:
|
型號 |
流量 |
揚程 |
效率（%） |
轉速（r/min） |
功率 |
汽蝕余量 |
||
|
(m³/h) |
（L/S） |
軸功率 |
電機功率 |
|||||
|
25GDL2-12×3 |
1.4 2 2.4 |
0.39 0.56 0.67 |
38 36 33
|
23 30 32 |
2900 |
0.63 0.65 0.67 |
1.1 |
1.4 1.7 1.8 |
|
25GDL2-12×4 |
1.4 2 2.4 |
0.39 0.56 0.67 |
50 48 44 |
23 30 32 |
2900 |
0.83 0.87 0.90 |
1.1 |
1.4 1.7 1.8 |
|
25GDL2-12×5 |
1.4 2 2.4 |
0.39 0.56 0.67 |
63 60 55 |
23 30 32 |
2900 |
1.04 1.09 1.12 |
1.5 |
1.4 1.7 1.8 |
|
25GDL2-12×6 |
1.4 2 2.4 |
0.39 0.56 0.67 |
76 72 66 |
23 30 32 |
2900 |
1.26 1.30 1.35 |
1.5 |
1.4 1.7 1.8 |
|
25GDL2-12×7 |
1.4 2 2.4 |
0.39 0.56 0.67 |
88 84 77 |
23 30 32 |
2900 |
1.46 1.52 1.57 |
2.2 |
1.4 1.7 1.8 |
|
25GDL2-12×8 |
1.4 2 2.4 |
0.39 0.56 0.67 |
101 96 88 |
23 30 32 |
2900 |
1.63 1.74 1.80 |
2.2 |
1.4 1.7 1.8 |
|
25GDL2-12×9 |
1.4 2 2.4 |
0.39 0.56 0.67 |
114 108 99 |
23 30 32 |
2900 |
1.89 1.96 2.02 |
2.2 |
1.4 1.7 1.8 |
|
25GDL2-12×10 |
1.4 2 2.4 |
0.39 0.56 0.67 |
126 120 110 |
23 30 32 |
2900 |
2.01 2.17 2.24 |
3 |
1.4 1.7 1.8 |
|
25GDL2-12×11 |
1.4 2 2.4 |
0.39 0.56 0.67 |
139 132 121 |
23 30 32 |
2900 |
2.31 2.39 2.47 |
3 |
1.4 1.7 1.8 |
|
25GDL2-12×12 |
1.4 2 2.4 |
0.39 0.56 0.67 |
152 144 132 |
23 30 32 |
2900 |
2.52 2.61 2.70 |
3 |
1.4 1.7 1.8 |
|
25GDL4-11×3 |
2.8 4 4.8 |
0.78 1.11 1.33 |
36 33 28.5 |
32 40 41 |
2900 |
0.86 0.90 0.91 |
1.1 |
1.4 1.7 1.8 |
|
25GDL4-11×4 |
2.8 4 4.8 |
0.78 1.11 1.33 |
48 44 38 |
32 40 41 |
2900 |
1.14 1.20 1.21 |
1.5 |
1.4 1.7 1.8 |
|
25GDL4-11×5 |
2.8 4 4.8 |
0.78 1.11 1.33 |
60 55 47.5 |
32 40 41 |
2900 |
1.43 1.50 1.51 |
2.2 |
1.4 1.7 1.8 |
|
25GDL4-11×6 |
2.8 4 4.8 |
0.78 1.11 1.33 |
72 66 57 |
32 40 41 |
2900 |
1.72 1.80 1.82 |
2.2 |
1.4 1.7 1.8 |
|
25GDL4-11×7 |
2.8 4 4.8 |
0.78 1.11 1.33 |
84 77 66.5 |
32 40 41 |
2900 |
2.00 2.10 2.12 |
3 |
1.4 1.7 1.8 |
|
25GDL4-11×8 |
2.8 4 4.8 |
0.78 1.11 1.33 |
96 88 76 |
32 40 41 |
2900 |
2.29 2.40 2.42 |
3 |
1.4 1.7 1.8 |
|
25GDL4-11×9 |
2.8 4 4.8 |
0.78 1.11 1.33 |
108 99 85.5 |
32 40 41 |
2900 |
2.57 2.70 2.73 |
3 |
1.4 1.7 1.8 |
|
25GDL4-11×10 |
2.8 4 4.8 |
0.78 1.11 1.33 |
120 110 95 |
32 40 41 |
2900 |
2.86 3.00 3.03 |
4 |
1.4 1.7 1.8 |
|
25GDL4-11×11 |
2.8 4 4.8 |
0.78 1.11 1.33 |
132 121 104.5 |
32 40 41 |
2900 |
3.14 3.30 3.33 |
4 |
1.4 1.7 1.8 |
|
25GDL4-11×12 |
2.8 4 4.8 |
0.78 1.11 1.33 |
144 132 114 |
32 40 41 |
2900 |
3.43 3.60 3.64 |
4 |
1.4 1.7 1.8 |
|
25GDL4-11×13 |
2.8 4 4.8 |
0.78 1.11 1.33 |
156 143 123.5 |
32 40 41 |
2900 |
3.72 3.90 3.94 |
4 |
1.4 1.7 1.8 |
|
40GDL6-12×3 |
4.2 6 7.2 |
1.17 1.67 2.0 |
41 36 30.5 |
43 52 52 |
2900 |
1.09 1.13 1.15 |
1.5 |
1.4 1.7 1.8 |
|
40GDL6-12×4 |
4.2 6 7.2 |
1.17 1.67 2.0 |
54 48 40.6 |
43 52 52 |
2900 |
1.45 1.5 1.53 |
2.2 |
1.4 1.7 1.8 |
|
40GDL6-12×5 |
4.2 6 7.2 |
1.17 1.67 2.0 |
68 60 51 |
43 52 52 |
2900 |
1.81 1.88 1.92 |
2.2 |
1.4 1.7 1.8 |
|
40GDL6-12×6 |
4.2 6 7.2 |
1.17 1.67 2.0 |
82 72 61 |
43 52 52 |
2900 |
2.18 2.26 2.30 |
3 |
1.4 1.7 1.8 |
|
40GDL6-12×7 |
4.2 6 7.2 |
1.17 1.67 2.0 |
95 84 71 |
43 52 52 |
2900 |
2.54 2.64 2.69 |
3 |
1.4 1.7 1.8 |
|
40GDL6-12×8 |
4.2 6 7.2 |
1.17 1.67 2.0 |
109 96 81 |
43 52 52 |
2900 |
2.91 3.01 3.07 |
4 |
1.4 1.7 1.8 |
|
40GDL6-12×9 |
4.2 6 7.2 |
1.17 1.67 2.0 |
123 108 91 |
43 52 52 |
2900 |
2.27 3.39 3.45 |
4 |
1.4 1.7 1.8 |
|
40GDL6-12×10 |
4.2 6 7.2 |
1.17 1.67 2.0 |
136 120 102 |
43 52 52 |
2900 |
3.63 3.77 3.84 |
4 |
1.4 1.7 1.8 |
|
40GDL6-12×11 |
4.2 6 7.2 |
1.17 1.67 2.0 |
150 132 112 |
43 52 52 |
2900 |
4.0 4.15 4.22 |
5.5 |
1.4 1.7 1.8 |
|
40GDL6-12×12 |
4.2 6 7.2 |
1.17 1.67 2.0 |
164 144 122 |
43 52 52 |
2900 |
4.36 4.52 4.60 |
5.5 |
1.4 1.7 1.8 |
|
50GDL12-15×2 |
8.4 12 14.4 |
2.33 3.33 4.0 |
36 30 24 |
48 56 53 |
2900 |
1.72 1.75 1.85 |
2.2 |
1.4 1.8 1.8 |
|
50GDL12-15×3 |
8.4 12 14.4 |
2.33 3.33 4.0 |
54 45 36 |
48 56 53 |
2900 |
2.57 2.63 2.78 |
3 |
1.4 1.8 1.8 |
|
50GDL12-15×4 |
8.4 12 14.4 |
2.33 3.33 4.0 |
72 60 48 |
48 56 53 |
2900 |
3.43 3.5 3.70 |
4 |
1.4 1.8 1.8 |
|
50GDL12-15×5 |
8.4 12 14.4 |
2.33 3.33 4.0 |
90 75 60 |
48 56 53 |
2900 |
4.2 4.27 4.63 |
5.5 |
1.4 1.8 1.8 |
|
50GDL12-15×6 |
8.4 12 14.4 |
2.33 3.33 4.0 |
108 90 72 |
48 56 53 |
2900 |
5.15 5.25 5.55 |
5.5 |
1.4 1.8 1.8 |
|
50GDL12-15×7 |
8.4 12 14.4 |
2.33 3.33 4.0 |
126 105 84 |
48 56 53 |
2900 |
6.0 6.12 6.48 |
7.5 |
1.4 1.8 1.8 |
|
50GDL12-15×8 |
8.4 12 14.4 |
2.33 3.33 4.0 |
144 120 96 |
48 56 53 |
2900 |
6.86 7.0 7.40 |
7.5 |
1.4 1.8 1.8 |
|
50GDL12-15×9 |
8.4 12 14.4 |
2.33 3.33 4.0 |
162 135 108 |
48 56 53 |
2900 |
7.72 7.87 8.33 |
11 |
1.4 1.8 1.8 |
|
50GDL12-15×10 |
8.4 12 14.4 |
2.33 3.33 4.0 |
180 150 120 |
48 56 53 |
2900 |
8.58 8.75 9.25 |
11 |
1.4 1.8 1.8 |
|
50GDL18-15×2 |
12.6 18 21.6 |
2.5 5 6 |
36 30 25 |
56 65 67 |
2900 |
2.33 2.37 2.37 |
3 |
1.4 1.8 1.8 |
|
50GDL18-15×3 |
12.6 18 21.6 |
2.5 5 6 |
54 45 37.5 |
56 65 67 |
2900 |
3.5 3.56 3.56 |
4 |
1.4 1.8 1.8 |
|
50GDL18-15×4 |
12.6 18 21.6 |
2.5 5 6 |
72 60 50 |
56 65 67 |
2900 |
4.66 4.75 4.75 |
5.5 |
1.4 1.8 1.8 |
|
50GDL18-15×5 |
12.6 18 21.6 |
2.5 5 6 |
90 75 62.5 |
56 65 67 |
2900 |
5.83 5.93 5.93 |
7.5 |
1.4 1.8 1.8 |
|
50GDL18-15×6 |
12.6 18 21.6 |
2.5 5 6 |
108 90 75 |
56 65 67 |
2900 |
7.0 7.12 7.12 |
7.5 |
1.4 1.8 1.8 |
|
50GDL18-15×7 |
12.6 18 21.6 |
2.5 5 6 |
126 105 82.5 |
56 65 67 |
2900 |
8.16 8.30 8.31 |
11 |
1.4 1.8 1.8 |
|
50GDL18-15×8 |
12.6 18 21.6 |
2.5 5 6 |
144 120 100 |
56 65 67 |
2900 |
9.32 9.49 9.49 |
11 |
1.4 1.8 1.8 |
|
50GDL18-15×9 |
12.6 18 21.6 |
2.5 5 6 |
162 135 112.5 |
56 65 67 |
2900 |
10.49 10.68 10.68 |
15 |
1.4 1.8 1.8 |
|
50GDL18-15×10 |
12.6 18 21.6 |
2.5 5 6 |
180 150 125 |
56 65 67 |
2900 |
11.66 11.87 11.87 |
15 |
1.4 1.8 1.8 |
|
65GDL24-12×2 |
16.8 24 28.8 |
4.67 6.67 8 |
36 30 25 |
56 65 67 |
2900 |
2.33 2.37 2.37 |
3 |
2.9 3 3.1 |
|
65GDL24-12×3 |
16.8 24 28.8 |
4.67 6.67 8 |
54 45 37.5 |
56 65 67 |
2900 |
3.5 3.56 3.56 |
4 |
2.9 3 3.1 |
|
65GDL24-12×4 |
16.8 24 28.8 |
4.67 6.67 8 |
72 60 50 |
56 65 67 |
2900 |
4.66 4.75 4.75 |
5.5 |
2.9 3 3.1 |
|
65GDL24-12×5 |
16.8 24 28.8 |
4.67 6.67 8 |
90 75 62.5 |
56 65 67 |
2900 |
5.83 5.93 5.93 |
7.5 |
2.9 3 3.1 |
|
65GDL24-12×6 |
16.8 24 28.8 |
4.67 6.67 8 |
108 90 75 |
56 65 67 |
2900 |
7.0 7.12 7.12 |
7.5 |
2.9 3 3.1 |
|
65GDL24-12×7 |
16.8 24 28.8 |
4.67 6.67 8 |
126 105 82.5 |
56 65 67 |
2900 |
8.16 8.30 8.31 |
11 |
2.9 3 3.1 |
|
65GDL24-12×8 |
16.8 24 28.8 |
4.67 6.67 8 |
144 120 100 |
56 65 67 |
2900 |
9.32 9.49 9.49 |
11 |
2.9 3 3.1 |
|
65GDL24-12×9 |
16.8 24 28.8 |
4.67 6.67 8 |
162 135 112.5 |
56 65 67 |
2900 |
10.49 10.68 10.68 |
15 |
2.9 3 3.1 |
|
65GDL24-12×10 |
16.8 24 28.8 |
4.67 6.67 8 |
180 150 125 |
56 65 67 |
2900 |
11.66 11.87 11.87 |
15 |
2.9 3 3.1 |
|
80GDL36-12×2 |
25.2 36 43.2 |
7 10 12 |
27 24 21 |
59 68 67 |
2900 |
3.14 3.46 3.68 |
4 |
3.5 4 4.2 |
|
80GDL36-12×3 |
25.2 36 43.2 |
7 10 12 |
40.5 36 31.5 |
59 68 67 |
2900 |
4.71 5.19 5.53 |
5.5
|
3.5 4 4.2 |
|
80GDL36-12×4 |
25.2 36 43.2 |
7 10 12 |
54 48 42 |
59 68 67 |
2900 |
6.29 6.92 7.37 |
7.5 |
3.5 4 4.2 |
|
80GDL36-12×5 |
25.2 36 43.2 |
7 10 12 |
67.5 60 52.5 |
59 68 67 |
2900 |
7.86 9.67 9.22 |
11 |
3.5 4 4.2 |
|
80GDL36-12×6 |
25.2 36 43.2 |
7 10 12 |
81 72 63 |
59 68 67 |
2900 |
9.43 10.39 11.06 |
11 |
3.5 4 4.2 |
|
80GDL36-12×7 |
25.2 36 43.2 |
7 10 12 |
94.5 64 73.5 |
59 68 67 |
2900 |
11.0 12.12 12.9 |
15 |
3.5 4 4.2 |
|
80GDL36-12×8 |
25.2 36 43.2 |
7 10 12 |
108 96 84 |
59 68 67 |
2900 |
12.58 13.85 14.75 |
15 |
3.5 4 4.2 |
|
80GDL36-12×9 |
25.2 36 43.2 |
7 10 12 |
121.5 108 94.5 |
59 68 67 |
2900 |
14.14 15.59 16.5 |
18.5 |
3.5 4 4.2 |
|
80GDL36-12×10 |
25.2 36 43.2 |
7 10 12 |
135 120 115 |
59 68 67 |
2900 |
15.71 17.31 18.4 |
18.5 |
3.5 4 4.2 |
|
80GDL54-14×2 |
37.8 54 64.8 |
10.5 15 18 |
32 28 25 |
62 70 73.5 |
2900 |
5.32 5.88 6.01 |
7.5 |
3.7 4 4.2 |
|
80GDL54-14×3 |
37.8 54 64.8 |
10.5 15 18 |
48 42 37.5 |
62 70 73.5 |
2900 |
7.97 8.82 9.01 |
11 |
3.7 4 4.2 |
|
80GDL54-14×4 |
37.8 54 64.8 |
10.5 15 18 |
64 56 50 |
62 70 73.5 |
2900 |
10.13 11.76 12.01 |
15 |
3.7 4 4.2 |
|
80GDL54-14×5 |
37.8 54 64.8 |
10.5 15 18 |
80 70 62.5 |
62 70 73.5 |
2900 |
13.3 14.7 15.0 |
18.5 |
3.7 4 4.2 |
|
80GDL54-14×6 |
37.8 54 64.8 |
10.5 15 18 |
96 84 75 |
62 70 73.5 |
2900 |
15.9 17.64 18.0 |
18.5 |
3.7 4 4.2 |
|
80GDL54-14×7 |
37.8 54 64.8 |
10.5 15 18 |
112 98 87.5 |
62 70 73.5 |
2900 |
18.6 20.58 21.0 |
22 |
3.7 4 4.2 |
|
80GDL54-14×8 |
37.8 54 64.8 |
10.5 15 18 |
128 112 100 |
62 70 73.5 |
2900 |
21.3 23.54 24.0 |
30 |
3.7 4 4.2 |
|
80GDL54-14×9 |
37.8 54 64.8 |
10.5 15 18 |
144 126 112.5 |
62 70 73.5 |
2900 |
23.9 26.49 27.0 |
30 |
3.7 4 4.2 |
|
80GDL54-14×10 |
37.8 54 64.8 |
10.5 15 18 |
160 140 125 |
62 70 73.5 |
2900 |
26.6 29.43 30.0 |
37 |
3.7 4 4.2 |
|
100GDL72-14×2 |
50.4 72 86.6 |
14 20 24 |
32 28 24 |
65 74 73 |
2900 |
6.87 7.53 7.74 |
11 |
4.2 4.5 4.7 |
|
100GDL72-14×3 |
50.4 72 86.6 |
14 20 24 |
48 42 36 |
65 74 73 |
2900 |
10.3 11.29 11.61 |
15 |
4.2 4.5 4.7 |
|
100GDL72-14×4 |
50.4 72 86.6 |
14 20 24 |
64 56 48 |
65 74 73 |
2900 |
13.7 15.05 15.48 |
18.5 |
4.2 4.5 4.7 |
|
100GDL72-14×5 |
50.4 72 86.6 |
14 20 24 |
80 70 60 |
65 74 73 |
2900 |
17.17 18.81 19.35 |
22 |
4.2 4.5 4.7 |
|
100GDL72-14×6 |
50.4 72 86.6 |
14 20 24 |
96 84 72 |
65 74 73 |
2900 |
20.6 22.57 23.22 |
30 |
4.2 4.5 4.7 |
|
100GDL72-14×7 |
50.4 72 86.6 |
14 20 24 |
112 98 84 |
65 74 73 |
2900 |
24.03 26.34 27.09 |
30 |
4.2 4.5 4.7 |
|
100GDL72-14×8 |
50.4 72 86.6 |
14 20 24 |
128 112 96 |
65 74 73 |
2900 |
27.4 30.1 30.96 |
37 |
4.2 4.5 4.7 |
|
100GDL72-14×9 |
50.4 72 86.6 |
14 20 24 |
144 126 108 |
65 74 73 |
2900 |
30.9 33.9 34.83 |
37 |
4.2 4.5 4.7 |
|
100GDL72-14×100 |
50.4 72 86.6 |
14 20 24 |
160 140 120 |
65 74 73 |
2900 |
34.3 37.6 38.7 |
45 |
4.2 4.5 4.7 |
|
100GDL100-20×2 |
70 100 120 |
19.4 27.7 33.3 |
46 40 34 |
65 74 73 |
2900 |
13.5 14.7 15.2 |
18.5 |
4.2 4.5 4.7 |
|
100GDL100-20×3 |
70 100 120 |
19.4 27.7 33.3 |
69 60 51 |
65 74 73 |
2900 |
20.2 22.1 22.8 |
30 |
4.2 4.5 4.7 |
|
100GDL100-20×4 |
70 100 120 |
19.4 27.7 33.3 |
92 80 68 |
65 74 73 |
2900 |
27.0 29.5 30.4 |
37 |
4.2 4.5 4.7 |
|
100GDL100-20×5 |
70 100 120 |
19.4 27.7 33.3 |
115 100 85 |
65 74 73 |
2900 |
33.7 36.8 38.1 |
45 |
4.2 4.5 4.7 |
|
100GDL100-20×6 |
70 100 120 |
19.4 27.7 33.3 |
138 120 102 |
65 74 73 |
2900 |
40.5 44.2 45.7 |
55 |
4.2 4.5 4.7 |
|
100GDL100-20×7 |
70 100 120 |
19.4 27.7 33.3 |
161 140 119 |
65 74 73 |
2900 |
47.2 51.5 53.3 |
75 |
4.2 4.5 4.7 |
|
100GDL100-20×8 |
70 100 120 |
19.4 27.7 33.3 |
181 160 136 |
65 74 73 |
2900 |
54.0 58.9 60.9 |
75 |
4.2 4.5 4.7 |
|
100GDL100-20×9 |
70 100 120 |
19.4 27.7 33.3 |
207 180 153 |
65 74 73 |
2900 |
60.7 66.3 68.5 |
75 |
4.2 4.5 4.7 |
|
100GDL100-20×10 |
70 100 120 |
19.4 27.7 33.3 |
230 200 170 |
65 74 73 |
2900 |
67.5 73.6 76.1 |
90 |
4.2 4.5 4.7 |
|
125GDL100-20×2 |
70 100 120 |
19.4 27.7 33.3 |
46 40 34 |
65 74 73 |
2900 |
13.5 14.7 15.2 |
18.5 |
4.2 4.5 4.7 |
|
125GDL100-20×3 |
70 100 120 |
19.4 27.7 33.3 |
69 60 51 |
65 74 73 |
2900 |
20.2 22.1 22.8 |
30 |
4.2 4.5 4.7 |
|
125GDL100-20×4 |
70 100 120 |
19.4 27.7 33.3 |
92 80 68 |
65 74 73 |
2900 |
27.0 29.5 30.4 |
37 |
4.2 4.5 4.7 |
|
125GDL100-20×5 |
70 100 120 |
19.4 27.7 33.3 |
115 100 85 |
65 74 73 |
2900 |
33.7 36.8 38.1 |
45 |
4.2 4.5 4.7 |
|
125GDL100-20×6 |
70 100 120 |
19.4 27.7 33.3 |
138 120 102 |
65 74 73 |
2900 |
40.5 44.2 45.7 |
55 |
4.2 4.5 4.7 |
|
125GDL100-20×7 |
70 100 120 |
19.4 27.7 33.3 |
161 140 119 |
65 74 73 |
2900 |
47.2 51.5 53.3 |
75 |
4.2 4.5 4.7 |
|
125GDL100-20×8 |
70 100 120 |
19.4 27.7 33.3 |
181 160 136 |
65 74 73 |
2900 |
54.0 58.9 60.9 |
75 |
4.2 4.5 4.7 |
|
125GDL100-20×9 |
70 100 120 |
19.4 27.7 33.3 |
207 180 153 |
65 74 73 |
2900 |
60.7 66.3 68.5 |
75 |
4.2 4.5 4.7 |
|
125GDL100-20×10 |
70 100 120 |
19.4 27.7 33.3 |
230 200 170 |
65 74 73 |
2900 |
67.5 73.6 76.1 |
90 |
4.2 4.5 4.7 |
|
150GDL160-20×2 |
112 160 192 |
31.1 44.4 53.3 |
46 40 34 |
69 78 77 |
2900 |
20.3 22.3 23.1 |
30 |
4.4 4.5 4.7 |
|
150GDL160-20×3 |
112 160 192 |
31.1 44.4 53.3 |
69 60 51 |
69 78 77 |
2900 |
30.5 33.5 34.6 |
37 |
4.4 4.5 4.7 |
|
150GDL160-20×4 |
112 160 192 |
31.1 44.4 53.3 |
92 80 68 |
69 78 77 |
2900 |
40.6 44.7 46.2 |
55 |
4.4 4.5 4.7 |
|
150GDL160-20×5 |
112 160 192 |
31.1 44.4 53.3 |
115 100 85 |
69 78 77 |
2900 |
50.9 55.9 57.8 |
75 |
4.4 4.5 4.7 |
|
150GDL160-20×6 |
112 160 192 |
31.1 44.4 53.3 |
138 120 102 |
69 78 77 |
2900 |
61.0 67.1 69.3 |
75 |
4.4 4.5 4.7 |
|
150GDL160-20×7 |
112 160 192 |
31.1 44.4 53.3 |
161 140 119 |
69 78 77 |
2900 |
71.2 78.3 80.9 |
90 |
4.4 4.5 4.7 |
|
150GDL160-20×8 |
112 160 192 |
31.1 44.4 53.3 |
184 160 136 |
69 78 77 |
2900 |
81.4 89.4 92.4 |
110 |
4.4 4.5 4.7 |
|
150GDL160-20×9 |
112 160 192 |
31.1 44.4 53.3 |
207 180 153 |
69 78 77 |
2900 |
91.6 100.6 104.0 |
110 |
4.4 4.5 4.7 |
|
150GDL160-20×10 |
112 160 192 |
31.1 44.4 53.3 |
230 200 170 |
69 78 77 |
2900 |
101.7 111.8 115.5 |
132 |
4.4 4.5 4.7 |
我們的優勢
堅持“以用戶為中心、以人才為根本、努力實現你我共贏”的經營理念，以我們的誠信的態度和加倍的努力，與您共同發展。
多層審核，注重品質細節，對每一道生產工序負責，對每一位用戶負責，竭誠為用戶提供合格的、可靠的產品。
在生產、銷售各方面不斷學習，進一步提高公司的技術、質量和服務，保證每一位來我們公司的客戶高興而來，滿意而歸。
售前、售中、售后完整服務體系，保障客戶的利益。貼心的客服24小時在線，隨時為您服務，聆聽客戶反饋，及時跟進。
相關文章
在線留言
18226668889( 周一至周五 9:00--17:00 )
lihongchenaw@163.com
安徽省天長市經濟開發區緯三路118號Copyright ? 2023 安徽天富泵閥有限公司 備案號：皖I(lǐng)CP備19017865號-3
技術支持：食品機械網 管理登陸 sitemap.xml
您當前的位置：
